Weeping Tile: How It Protects Your Home from Water Damage

What is a Weeping Tile?

Contrary to its name, weeping tiles has nothing to do with the actual tiles in your home. Instead, it refers to a network of perforated pipes that are used to manage and divert excess water away from the foundation. These pipes are typically made from materials like clay, plastic, or concrete and are buried around the perimeter of the home, usually at the base of the foundation.

Types of weeping Tiles System:

There are several types of weeping tiles systems available, each with its own characteristics and installation methods. Understanding the different types can help you choose the most appropriate option for your needs. Let’s explore some common types of weeping tile systems:

• Traditional Perforated Pipe System: This system involves installing perforated pipes made of clay, plastic, or concrete in a gravel-filled trench around the foundation. Water enters the pipes through small holes or slots and is directed by gravity or slope towards a drainage area or sump pit. A sump pump may be used to discharge the water from the pit.
• Exterior Waterproofing Membrane System: In this type of system, a waterproofing membrane is applied to the exterior foundation walls. The membrane acts as a barrier against water and directs it downward. Weeping tile pipes are installed in a trench along with gravel or stone. The water flows into the weeping tile and is directed away from the foundation.
• Interior Weeping Tile System: This system is installed on the inside of foundation walls, typically in existing homes or buildings with basements or crawl spaces. Weeping tile pipes are placed in a trench along the interior perimeter, surrounded by gravel or stone. The pipes are connected to a sump pit or a drain system within the basement, and a sump pump is used to discharge the water.
• French Drain System: This system is used to manage surface water or water pooling around buildings or yards. A sloped trench is created, and perforated pipes are placed in it. The pipes are surrounded by gravel or stone, and the system redirects the collected water to a designated drainage area or storm sewer.

Choosing the right weeping tile system depends on your specific requirements and circumstances. Consulting with a professional waterproofing expert can help you determine the most suitable option for your home’s foundation protection needs.

How Does Weeping Tile Work?

The primary function of weeping tile is to collect and redirect water away from the foundation to prevent water damage, dampness, and potential structural issues. Here’s a step-by-step breakdown of how the weeping tile system works:

• Water Collection: Weeping tile pipes are installed in a trench around the foundation of the house. The perforated sections of the pipes allow water to enter, capturing any excess water that would otherwise accumulate around the foundation.
• Drainage: As water enters the weeping tile, it flows through the pipes due to gravity or sometimes with the assistance of a sump pump. The weeping tile system is sloped to ensure that water moves away from the foundation.
• Discharge: The weeping tile system is designed to carry the collected water away from the foundation and deposit it into a drainage system or a designated area, such as a municipal storm drain or a rain garden.
• Preventing Hydrostatic Pressure: By efficiently managing water around the foundation, weeping tile prevents the build-up of hydrostatic pressure, which occurs when water accumulates and exerts pressure on the foundation walls. This pressure can lead to cracks, leaks, and even structural damage.

Why is the Weeping Tile Important?

• Foundation Protection: Weeping tile acts as a first line of defense against water damage, protecting your home’s foundation from excess moisture that could compromise its structural integrity. By preventing water accumulation, it helps avoid issues like basement leaks, cracks, and dampness.
• Basement Waterproofing: If you have a basement or a crawl space, weeping tile plays a crucial role in keeping these areas dry. By efficiently draining water away from your foundation, it minimizes the risk of water seepage, mold growth, and other moisture-related problems.
• Long-Term Cost Savings: Investing in a properly functioning weeping tile system can save you significant amounts of money in the long run. By preventing water damage and foundation issues, you can avoid costly repairs, such as fixing cracks, waterproofing basements, or even full-scale foundation reconstruction.
• Preserving Home Value: A robust weeping tile system enhances the value and marketability of your home. Buyers are often wary of properties with a history of water damage or foundation issues, so having a reliable weeping tile system in place gives potential buyers peace of mind and can help maintain or increase the value of your property.

How Weeping Tile Systems Aid in Water Damage Prevention?

Weeping tile systems are essential for preventing water damage by efficiently managing water around the foundation. Here’s how these systems help in water damage prevention:

• Water Diversion: Weeping tile systems collect excess water near the foundation, preventing it from pooling and causing damage. By allowing water to enter through perforated pipes or drains, the system redirects it away from the foundation, effectively diverting the water.
• Relief from Hydrostatic Pressure: The accumulation of water around the foundation creates hydrostatic pressure, which can harm the foundation. Weeping tile systems alleviate this pressure by collecting and redirecting water away from the foundation, reducing the risk of cracks or structural damage.
• Basement Waterproofing: Weeping tile systems are particularly useful for waterproofing basements, where water infiltration is common. By managing water effectively, these systems prevent water seepage through basement walls and floors, safeguarding against issues such as mold growth, material deterioration, and damage to stored items.
• Foundation Preservation: Water can weaken the foundation over time, leading to structural issues. Weeping tile systems protect the foundation by preventing water saturation and moisture accumulation. This helps prevent cracks, shifting, and other costly foundation problems.
• Prevention of Soil Erosion: Excessive water near the foundation can cause soil erosion, leading to uneven settling and potential foundation damage. Weeping tile systems prevent soil erosion by redirecting water away from the foundation, maintaining soil stability, and preserving the structure’s integrity.
• Mold and Mildew Prevention: Weeping tile systems control moisture levels around the foundation, reducing the risk of mold and mildew growth. By effectively managing water, these systems help create a healthier indoor environment and mitigate respiratory issues associated with mold exposure.

How to Set Up a Weeping Tile System?

Installing a weeping tile system requires careful planning and execution. While it’s advisable to hire professionals for the job, here is a general overview of the installation process:

Evaluate the Site: Assess drainage patterns and identify areas where water accumulates near the foundation.
Determine the ideal location for the weeping tile system, considering factors like slope and landscaping.
Obtain Necessary Permits: Check if any permits or permissions are needed before installing the weeping tile system.
Excavation: Dig a trench around the foundation, typically 6 to 8 inches wide and sloping away from the foundation.

Prepare the Trench: Level the trench bottom and remove debris.
Consider using landscape fabric to prevent soil infiltration.

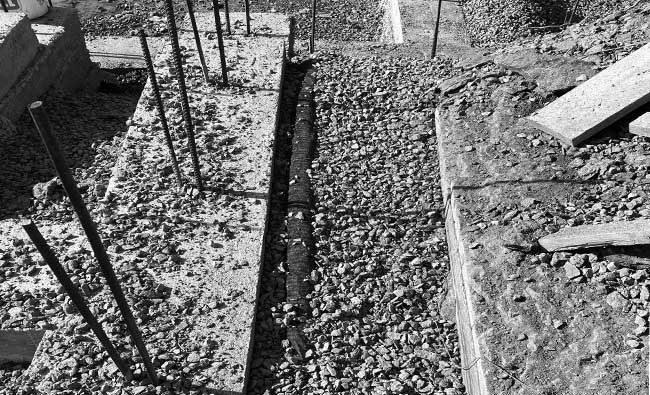

Install the Weeping Tile: Select the appropriate weeping tile, such as perforated plastic, clay, or concrete pipes. Place the weeping tile along the trench, ensuring the perforated side faces downward. Connect the sections securely, maintaining a consistent slope towards the desired drainage area.

Add Gravel or Stone: Surround the weeping tile with clean gravel or crushed stone, covering it completely and extending above the trench level.

Backfill the Trench: Fill the trench with excavated soil, compacting it in layers to avoid settling.
Maintain the proper slope away from the foundation.

Connect to Drainage System: If necessary, connect the weeping tile system to a sump pit or drainage pipe leading to an appropriate outlet.
Install a sump pump if needed for water discharge.

Restore Landscaping: Replace any disrupted landscaping, ensuring proper grading and incorporating features to facilitate water flow away from the foundation.

Consulting professionals are essential to ensure the weeping tile system is installed correctly, effectively managing water around the foundation and preventing water damage.

How much does installing weeping tile cost?

The cost of installing a weeping tile system can vary depending on several factors, including the size of your property, the complexity of the installation, the type of weeping tile system chosen, and the region where you live.

It’s important to obtain multiple quotes from reputable contractors in your area to get a more accurate estimate based on your specific requirements. Additionally, factors like additional repairs, landscaping restoration, and any necessary permits or inspections can also impact the overall cost of the weeping tile installation.

Conclusion

The weeping tile system is an essential component in safeguarding your home from water damage and maintaining a secure foundation. As a Toronto homeowner, protecting your home from water damage is of utmost importance. Weeping tiles play a crucial role in safeguarding your foundation and basement from the harmful effects of water infiltration. By diverting excess water away from your home, weeping tiles help maintain a dry and secure living environment. Remember to consult with a professional contractor to assess your specific needs and ensure a proper installation. With weeping tiles in place, you can enjoy peace of mind, even during heavy rainfall and potential flooding events in the Toronto area.
